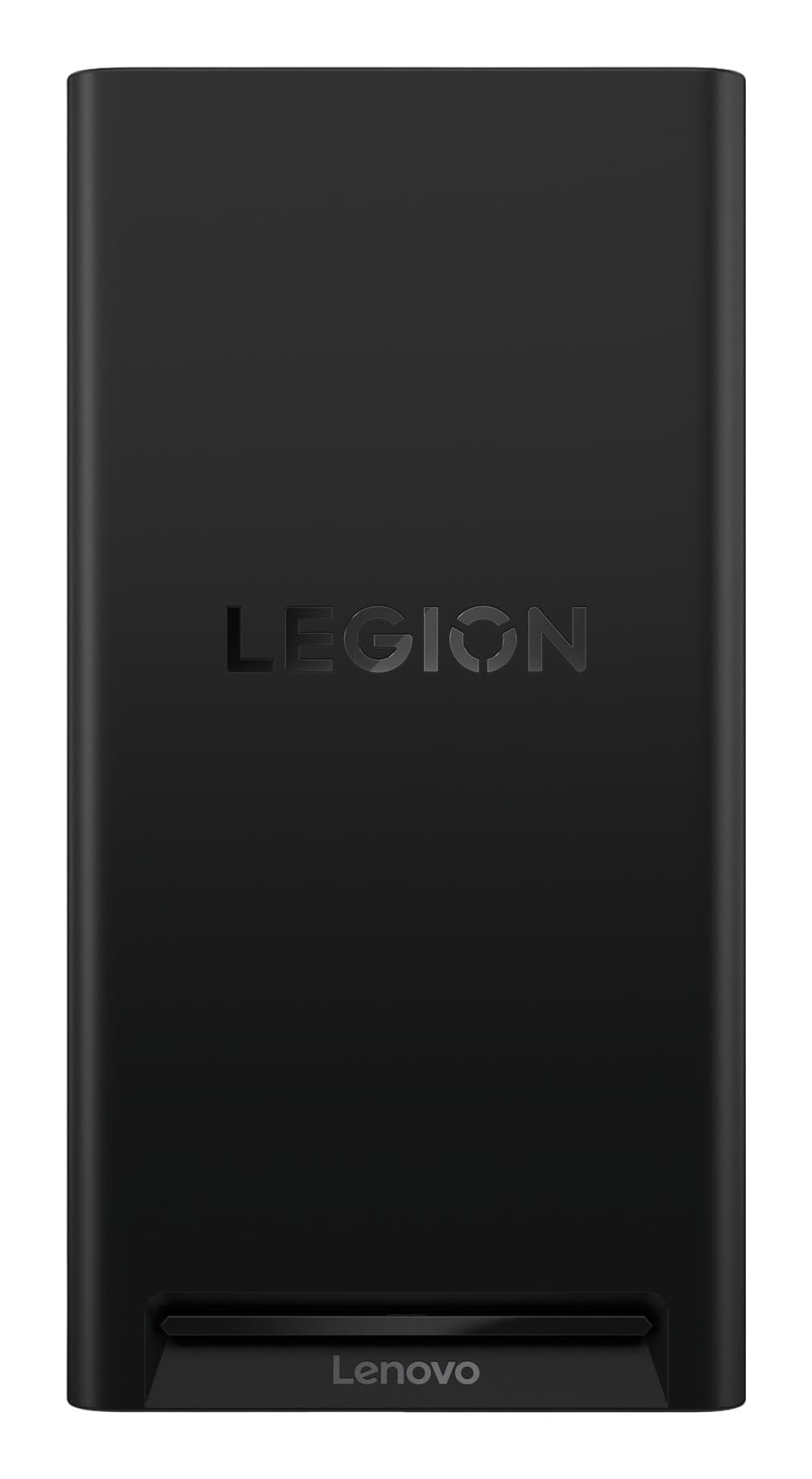

Lenovo DT Legion T5 30IAS10 U7265KF 1T 32G

Intel Core Ultra 7 265KF (30MB Cache), 32GB DDR5-SDRAM, 1000GB SSD, NVIDIA GeForce RTX 5070 (12GB GDDR7), LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit

Lenovo Legion T5 30IAS10. Processor family: Intel Core Ultra 7, Processor model: 265KF. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 1 TB, Storage media: SSD. Discrete graphics card model: NVIDIA GeForce RTX 5070. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 850 W. Chassis type: Tower. Product type: PC. Weight: 15 kg. Product colour: Black

Warranty: 1-year, Mail-in; 3Y Legion Ultimate Support with Onsite

Processor

• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 265KF
• Processor cores: 20
• Processor threads: 20
• Processor boost frequency: 5.5 GHz
• Performance cores: 8
• Efficient cores: 12
• Performance-core Max Turbo Frequency: 5.4 GHz
• Efficient-core Max Turbo Frequency: 4.6 GHz
• Performance-core base frequency: 3.9 GHz
• Efficient-core base frequency: 3.3 GHz
• Processor cache: 30 MB
• Processor cache type: Smart Cache
• Number of processors installed: 1
• Processor base power: 125 W
• Maximum turbo power: 250 W

Neural processor unit (NPU)

• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
• Total processor performance up to: 25 TOPs
• NPU performance up to: 13 TOPs

Memory

• Internal memory: 32 GB
• Maximum internal memory: 64 GB
• Internal memory type: DDR5-SDRAM
• Memory layout (slots x size): 2 x 16 GB
• Memory slots: 4x DIMM
• Memory clock speed: 5600 MHz
• Non-ECC: Yes
• Memory channels: Dual-channel

Storage

• Total storage capacity: 1 TB
• Storage media: SSD
• Optical drive type: No
• Number of storage drives installed: 1
• Total SSDs capacity: 1 TB
• Number of SSDs installed: 1
• SSD capacity: 1 TB
• SSD interface: PCI Express 4.0
• NVMe: Yes
• SSD form factor: M.2
• M.2 SSD size: 2280 (22 x 80 mm)
• Card reader integrated: No

Graphics

• Discrete graphics card: Yes
• Discrete GPU manufacturer: NVIDIA
• On-board graphics card: No
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics card memory: 12 GB
• Discrete graphics memory type: GDDR7
• Number of discrete graphics cards: 1
• On-board graphics card model: Not available

Performance

• Market positioning: Gaming
• Motherboard chipset: Intel B860
• Password protection: Yes
• Password protection type: BIOS, HDD
• Trusted Platform Module (TPM): Yes
• Product type: PC
• Trusted Platform Module (TPM) version: 2.0
• Audio output channels: 5.1 channels

Network

• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500 Mbit/s
• LAN controller: Dragon RTL8125BG
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.3

Ports & interfaces

• USB 2.0 ports quantity: 4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• Combo headphone/mic port: Yes
• Line-out: Yes

Expansion slots

• PCI Express x4 (Gen 3.x) slots: 1
• PCI Express x16 (Gen 5.x) slots: 1

Power

• Power supply: 850 W
• Power supply input voltage: 100 - 240 V
• Power supply input frequency: 50/60 Hz

Design

• Chassis type: Tower
• Colour name: Eclipse black
• Volume: 30 L
• Placement supported: Vertical
• Water cooling system: Yes
• Product colour: Black
• Viewing window: Yes
• Certified refurbished: No

Software

• Operating system architecture: 64-bit
• Operating system language: English
• Operating system installed: Windows 11 Pro

Display

• Display included: No

Audio

• Audio chip: Realtek ALC623
• Audio system: High Definition Audio

Operational conditions

• Operating temperature (T-T): 5 - 35 °C
• Storage temperature (T-T): -40 - 60 °C
• Operating relative humidity (H-H): 20 - 80%
• Storage relative humidity (H-H): 10 - 90%
• Operating altitude: 0 - 3048 m
• Non-operating altitude: 0 - 12192 m

Weight & dimensions

• Width: 211 mm
• Depth: 490.4 mm
• Height: 414 mm
• Weight: 15 kg

Packaging data

• Package width: 321 mm
• Package depth: 596 mm
• Package height: 549 mm
• Package weight: 17 kg

Packaging content

• Mouse included: Yes
• Mouse connectivity: Wired
• Keyboard included: Yes

Certificates

• Compliance certificates: RoHS
• Certification: RoHS

Keyboard

• Keyboard connectivity: Wired
