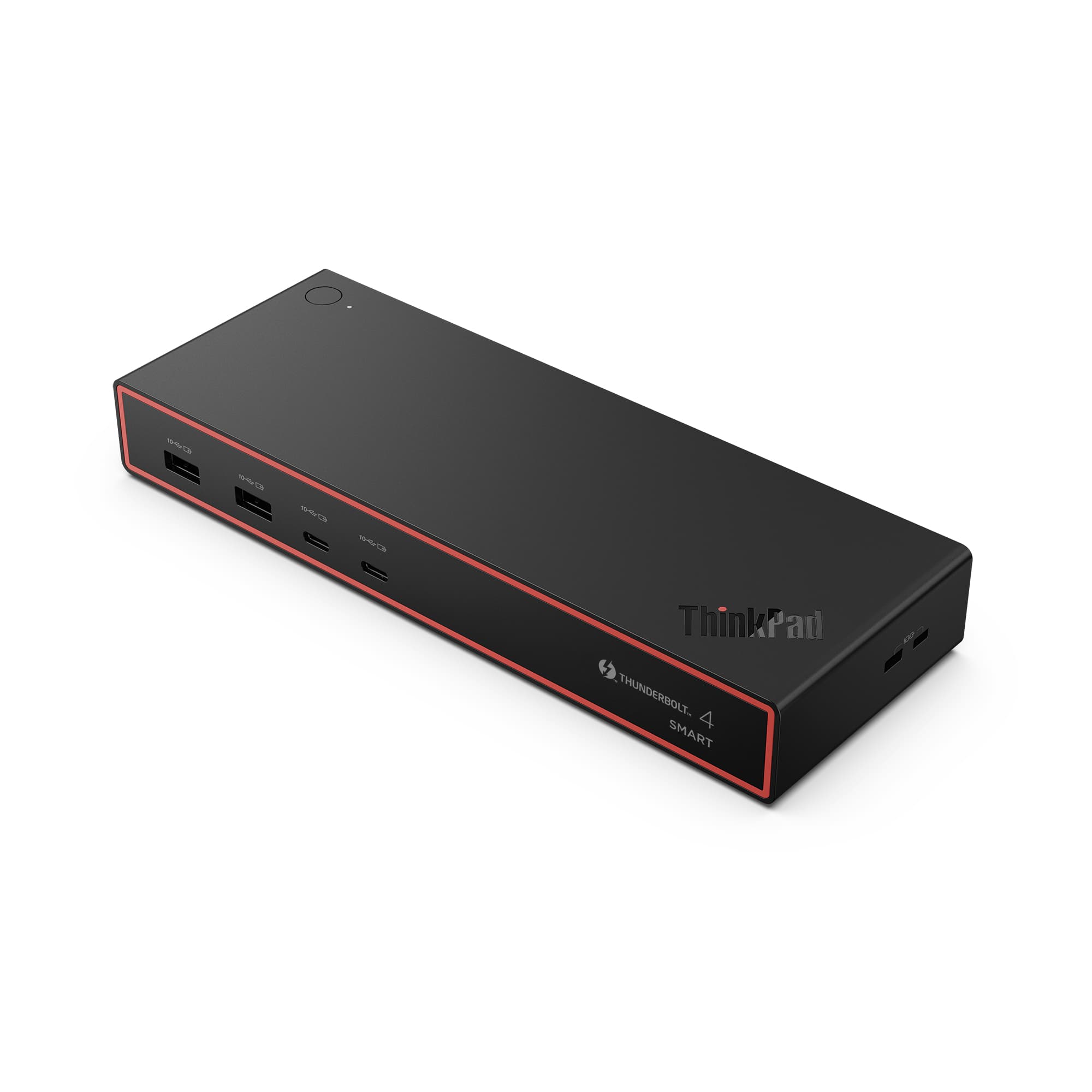

ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - US
Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 7500. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Black, Colour name: Eclipse Black, Maximum digital resolution: 7680 x 4320 pixels. Power source type: AC, Power supply: 135 W. Width: 220 mm, Depth: 80 mm, Height: 30 mm
Warranty: 3 Year
Ports & interfaces
- Connectivity technology: Wired
- Host interface: Thunderbolt 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- USB Power Delivery (USB PD): Yes
- USB Power Delivery revision: 3.1
- USB Power Delivery up to: 100 W
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 2
- DisplayPort version: 1.4
- Thunderbolt ports quantity: 2
- Thunderbolt 4 ports quantity: 2
- Microphone in: No
Network
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1
- Ethernet LAN data rates: 2500 Mbit/s
Performance
- Colour name: Eclipse Black
- Card reader integrated: No
- Maximum digital resolution: 7680 x 4320 pixels
- Number of displays supported: 4
- Maximum refresh rate: 60 Hz
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Product colour: Black
- On/off switch: Yes
- LED indicators: Yes
- Certification: FCC/ICES
CE
KCC
RCM
BSMI
NCC
VCCI
CB
cULus
EAC
TUV-Mark
LoA
Ukraine DoC
NOM
IFT
TELEC
UKCA
FAC DoC
VNTA
WPC ETA
SRRC
SDPPI
IMDA
SIRIM
NBTC
SUBTEL
KVALITET/RATEL
MCIT
ANRT
UCC
INACOM
CITRA
TRA
NTC
PSRC
NCA
ARTCI
INCM
Thunderbolt Cert.
EVO
Power
- Power source type: AC
- Power supply: 135 W
Software
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 20 - 95%
Weight & dimensions
- Width: 220 mm
- Depth: 80 mm
- Height: 30 mm
- Weight: 547.5 g
Packaging data
- Package width: 237.8 mm
- Package depth: 141 mm
- Package height: 75.8 mm
- Package weight: 1.26 kg
